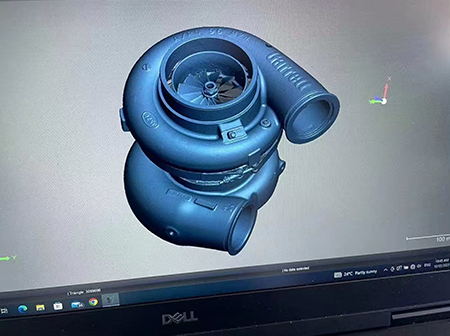

How to Create Durable Mechanical Models Using 3D Printing

Introduction

3D printing has revolutionized prototyping and manufacturing, enabling the creation of complex mechanical models with unprecedented speed and precision. However, creating durable mechanical parts requires careful consideration of design principles, material selection, printing parameters, and post-processing techniques. This comprehensive guide will walk you through the entire process of producing robust, functional mechanical models using 3D printing technology.

Understanding the Requirements for Durable Mechanical Models

Before beginning any 3D printing project, it's essential to define the mechanical requirements of your model:

1. Load-bearing capacity: Determine the forces and stresses the part will endure

2. Environmental conditions: Consider temperature, moisture, chemical exposure

3. Wear resistance: Assess friction and abrasion requirements

4. Dimensional accuracy: Define necessary tolerances for fit and function

5. Cycle life: Estimate how many operations the part must endure

Understanding these factors will guide your material selection and design approach.

Material Selection for Durable Models

Choosing the right material is critical for mechanical durability:

Common 3D Printing Materials for Mechanical Applications

1. PLA (Polylactic Acid)

- Pros: Easy to print, good dimensional accuracy

- Cons: Low heat resistance, brittle under stress

- Best for: Non-load bearing prototypes, demonstration models

2. ABS (Acrylonitrile Butadiene Styrene)

- Pros: Good impact resistance, moderate heat tolerance

- Cons: Requires heated bed, prone to warping

- Best for: Functional prototypes, enclosures

3. PETG (Polyethylene Terephthalate Glycol)

- Pros: Chemical resistance, good layer adhesion

- Cons: Less rigid than PLA

- Best for: Mechanical parts requiring chemical resistance

4. Nylon (Polyamide)

- Pros: Excellent toughness, wear resistance

- Cons: Absorbs moisture, requires high printing temps

- Best for: Gears, bearings, high-wear components

5. TPU (Thermoplastic Polyurethane)

- Pros: Flexible, impact absorbing

- Cons: Difficult to print precisely

- Best for: Gaskets, vibration dampeners

6. High-performance Materials

- Polycarbonate (PC), PEEK, PEKK

- Pros: Exceptional strength and heat resistance

- Cons: Require specialized printers, expensive

- Best for: Aerospace, automotive applications

Choosing Based on Application

For most durable mechanical models, ABS, PETG, or Nylon offer the best balance of printability and mechanical properties. For extreme conditions, consider high-performance materials.

Design Principles for Durable 3D Printed Parts

Proper design can significantly enhance the durability of 3D printed mechanical models:

1. Optimizing Geometry for Strength

- Avoid sharp corners: Use fillets and chamfers to distribute stress

- Consider load paths: Align structural elements with force directions

- Use ribs and gussets: Reinforce thin sections without adding bulk

- Hollow structures: Consider lattice infills to reduce weight while maintaining strength

2. Layer Orientation Considerations

- Align layers with stress directions: Parts are strongest along the layer lines

- Avoid critical stresses perpendicular to layers: Layer adhesion is typically the weakest point

- Consider printing orientation for surface finish: Critical surfaces should be printed facing up when possible

3. Wall Thickness and Infill

- Minimum wall thickness: Typically 1-2mm depending on material and application

- Infill percentage: 20-40% for most mechanical parts, higher for critical components

- Infill pattern: Rectilinear or honeycomb for strength, gyroid for isotropic properties

4. Designing for Assembly

- Clearance for moving parts: Typically 0.2-0.5mm depending on printer accuracy

- Press-fit tolerances: Design slightly undersized holes for tight fits

- Snap-fit joints: Include proper flexure and engagement features

- Threaded inserts: Design pockets for heat-set inserts rather than printing threads

Printer Settings for Durable Parts

Optimizing your printer settings can dramatically improve part strength:

1. Temperature Settings

- Nozzle temperature: Higher end of material range for better layer adhesion

- Bed temperature: Proper adhesion without warping

- Enclosure temperature: Important for materials prone to warping (ABS, Nylon)

2. Print Speed

- First layer: Slow (20-30mm/s) for good adhesion

- Outer walls: Moderate speed (40-60mm/s) for quality

- Infill: Can be faster (60-80mm/s) to save time

3. Layer Height

- Standard: 0.2mm for good balance of strength and speed

- High strength: 0.15mm for better layer bonding

- Draft quality: 0.3mm for quick prototypes

4. Other Critical Settings

- Extrusion multiplier: Ensure proper material flow (typically 90-110%)

- Retraction: Minimize stringing without causing under-extrusion

- Cooling: Proper fan settings to prevent warping while ensuring layer adhesion

Post-Processing Techniques for Enhanced Durability

Several post-processing methods can improve the mechanical properties of 3D printed parts:

1. Annealing

- Process: Heating parts to just below glass transition temperature

- Benefits: Increases crystallinity, improves heat resistance and strength

- Materials: Works well with PLA, ABS, Nylon

2. Chemical Smoothing

- Process: Vapor treatment with solvents (acetone for ABS, ethyl acetate for PLA)

- Benefits: Seals surface, improves layer bonding, enhances appearance

- Caution: Can reduce dimensional accuracy if overdone

3. Epoxy Coating

- Process: Applying thin epoxy resin to surfaces

- Benefits: Seals porous surfaces, adds wear resistance

- Applications: Parts exposed to fluids or abrasion

4. Mechanical Reinforcement

- Metal inserts: For high-stress connection points

- Carbon fiber wrapping: For structural reinforcement

- Embedded fasteners: For repeated assembly/disassembly

Testing and Validation

Before putting your mechanical model into service, conduct thorough testing:

1. Dimensional Verification

- Use calipers to check critical dimensions

- Verify fit with mating components

- Check for warping or distortion

2. Functional Testing

- Cycle moving parts through full range of motion

- Apply expected loads gradually

- Monitor for signs of stress or deformation

3. Environmental Testing

- Temperature exposure (if applicable)

- Humidity testing for hygroscopic materials

- UV exposure if used outdoors

4. Failure Analysis

- Examine broken parts to identify failure modes

- Modify design to address weaknesses

- Consider finite element analysis for complex stress patterns

Maintenance and Longevity Considerations

To maximize the lifespan of your 3D printed mechanical models:

1. Regular inspection: Check for cracks, wear, or deformation

2. Lubrication: Use appropriate lubricants for moving parts

3. UV protection: Apply coatings if exposed to sunlight

4. Moisture protection: Seal or store hygroscopic materials properly

5. Load management: Avoid exceeding design limits

Advanced Techniques for Specialized Applications

For particularly demanding applications, consider these advanced methods:

1. Multi-material Printing

- Combine rigid and flexible materials in one part

- Create overmolded grips or dampening elements

- Requires dual-extrusion printers

2. Fiber Reinforcement

- Short-fiber reinforced filaments (carbon fiber, glass fiber)

- Continuous fiber reinforcement systems

- Significantly increases strength and stiffness

3. Metal Filled Filaments

- PLA or ABS with metal powder (bronze, copper, steel)

- Can be sintered for true metal parts

- Heavier but with metal-like appearance

4. High-Temperature Materials

- PEEK, PEKK, Ultem for extreme conditions

- Require specialized printers with high-temperature hotends

- Excellent chemical and thermal resistance

Troubleshooting Common Durability Issues

Address these common problems to improve part longevity:

1. Layer Delamination

- Increase printing temperature

- Reduce cooling fan speed

- Use enclosure for temperature-sensitive materials

- Consider annealing

2. Brittle Parts

- Switch to tougher material (PETG, Nylon)

- Increase infill percentage

- Adjust print orientation

- Reduce cooling for better layer adhesion

3. Warping and Cracking

- Improve bed adhesion (glue, tape, proper leveling)

- Use heated bed and enclosure

- Add draft shields or brims

- Consider material with lower shrinkage

4. Poor Surface Finish Affecting Function

- Adjust layer height and print speed

- Enable ironing for top surfaces

- Post-process with sanding or vapor smoothing

- Consider orientation changes

Future Trends in Durable 3D Printing

Emerging technologies promise even more robust 3D printed mechanical parts:

1. New high-performance materials: Stronger polymers and composites

2. Multi-axis printing: Optimized fiber alignment for strength

3. In-situ curing: UV or laser curing during printing

4. AI-assisted design: Automatic optimization for strength and weight

5. Hybrid manufacturing: Combining 3D printing with traditional methods

Conclusion

Creating durable mechanical models with 3D printing requires a systematic approach that considers material properties, design optimization, precise printing parameters, and appropriate post-processing. By carefully selecting materials based on application requirements, designing with mechanical stresses in mind, and implementing proper printing techniques, you can produce functional parts that withstand real-world use. Remember that durability often involves trade-offs with print time, cost, and complexity, so prioritize the most critical aspects for your specific application. As 3D printing technology continues to advance, the possibilities for creating robust mechanical components will only expand, opening new opportunities for innovation across industries.
